Click here for Symbol legend

Prices are subject to change without notice.





Part #

Part Description (Brake)

Price

Click for Pictures

GROUP 12 BRAKE



BRAKE-KIT Master Brake Kit - contains Master Cylinder, 4 Wheel Cylinders, Brake Shoes for 4 wheels, 4 Brake Shoe Return Springs, 4 Rubber Brake Hoses, 6 correct style Clips for brake hoses and Copper Washers for brake hoses and master cylinder. $295.00 R.

WO-A-556

Master cylinder, assembly new exact repro

$55.00 R.

WO-KIT-MA

Kit, master cyl rebuild Wagner U.S. Made

$20.00 R.

GPW-2162

Cap, for master cylinder

$20.00 NOS

WO-637602

Boot, master cylinder

$5.00 R.

WO-637605

Bolt, master cylinder outlet fitting

$8.00 NOS

WO-637604

Washer, copper master cyl outlet bolt

$1.50 R.

WO-637606

Washer, copper master cyl outlet bolt

$1.50 R.

WO-A-557

Fitting, outlet, master cylinder

$8.00. R.

WO-A-1271

Switch, stop light

$15.00 NOS

WO-637599 Rod, push, master cylinder $20.00 R.
WO-A-183 Bolt, for rod assembly, master cylinder $15.00 R.

WO-A-647

Shield, master cyl (heat shield F available)

$45.00 R.

WO-A-6110

Wheel cylinder, rear

$22.00 R.

WO-A-1484

Wheel cylinder, front

$22.00 R.

WO-KIT FR

Kit, wheel cyl front

$5.00 R.

WO-KIT R

Kit, wheel cyl rear

$5.00 R.

WO-637540

Screw, bleed wheel cylinder

$3.00 R.

GPW-2264

Line, steel master cyl front

$15.00 NOS

WO-A-1488

Line, steel S wheel cylinder to hose

$6.00 R.

WO-A-1460

Hose, brake front axle to drum

$15.00 R.

WO-637424

Hose, brake, rear axle to frame

$15.00 R.

WO-A-1373

Hose, brake front axle to frame

$15.00 R.

WO-637426

Gasket, brake hose fitting (copper)

$0.75 NOS

WO-637432

Fitting, tee, brake hose

$8.00 R.

WO-A-5449

Clip, brake hose

$2.00 NOS

GPW-2223

Clip, brake tube

$3.00 NOS

LINE-SET

Brake line set, all steel lines complete (High quality)

$98.00 R.



Kit, brake line clip set (in steel line set)

$42.00 R.

WO-630593

Spring, return brake pedal to frame

$5.00 NOS

WO-637901

Plate, anchor pin

$5.00 U.

WO-537899

Pin, anchor bolt brake shoe

$10.00 NOS

WO-637900

Cam, shoe anchor pin

$5.00 R.

WO-A-754

Eccentric, brake shoe

$5.00 NOS

WO-637905

Spring, return brake shoe

$3.00 NOS

WO-A-8898

Plate, backing front and rear

$P.O.R. U.

STD-DRAFT Clutch & brake pedal draft pad kit Std $15.00 R.
EARLY-DRAFT Clutch & brake pedal draft pad kit Early $20.00 R.
GPW-DRAFT Clutch & brake pedal draft pad kit GPW type $20.00 R.

WO-A-1009

Band, handbrake external type assembly

$65.00 R.

WO-A-1002

Drum, handbrake external type

$50.00 R.

WO-A-1003 Cam, hand brake $8.00

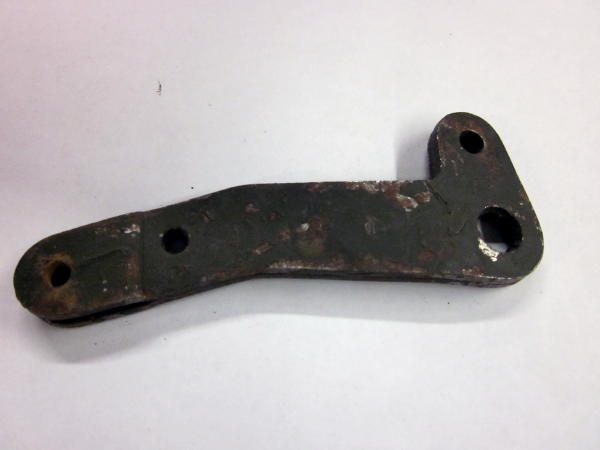

WO-A-1226

Crank, hand brake, external type

$20.00 NOS

WO-A-1227

Screw, for crank (special shoulder)

$5.00 NOS

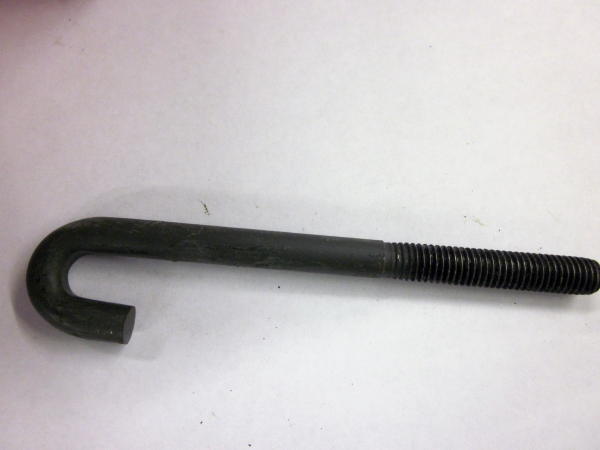

WO-A-1016

Bolt, hand brake adjuster

$15.00 NOS

WO-A-1017 Spring, releasing, hand brake $5.00 R.

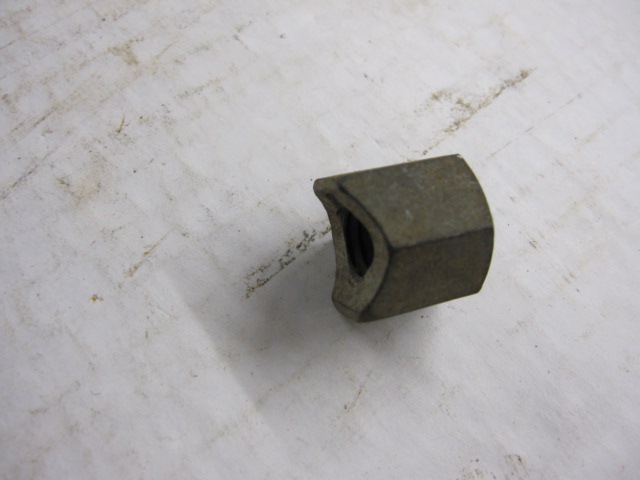

WO-A-1018

Nut, adjusting, hand brake, external type

$5.00 NOS

WO-A-1005

Quadrant, support hand brake

$5.00 NOS

WO-A-1004

Pin, hand brake cam

$4.00 NOS

WO-A-1019

Bolt, hand brake brt

$4.00 NOS

WO-A-1020 Screw, anchor  $5.00 R.
WO-A-1021 Spring, anchor $5.00 R.

WO-A-1242

Cable, w/ handle, hand brake, external type, no wire wrap

$45.00 R.

WO-A-1242W Cable, w/ handle, hand brake, external type, without clips with wire wrap $65.00 R.
WO-A-1242PB Cable w/ handle, hand brake, external type, 3 clamps, wire wrap, exact repro  $115.00 R.

GPW-2780

Cable w/ handle, hand brake, external type, 3 clamps, wire wrap, F markings exact repro

$115.00 R.

WO-639010

Bracket, hand brake ratchet tube w/ guide spring

$20.00 NOS

GPW-2272

Clip, hand brake cable at air cleaner brt. F

$4.00 NOS

WO-638780

Clip, hand brake cable at transfer case

$4.00 NOS

WO-A-5335

Spring, hand brake, retracting cable

$4.00 R.

WO-A-10324

Shoe, lining set hand break internal (late type)

$45.00 NOS

WO-116600

Lining set, hand brake internal (late type)

$20.00 NOS

WO-A-10337

Spring, retracting, shoe internal late

$4.00 R.

WO-A-10338

Spring, retracting, shoe, adjust internal late type

$4.00 R.

WO-642776

Brake, hand, assembly complete internal (late type)

$POR.NOS

WO-A-9332

Drum, hand brake internal (late type)

$60.00 NOS

WO-A-17254

Lever, hand brake internal (late type)

$10.00 NOS

WO-639244

Handle, hand brake internal (late type)

$20.00 NOS

WO-15149

Cable, hand brake internal (late type)

$35.00 R.

WO-15149

Cable, hand brake internal (late type) wire wrap

$95.00 NOS

WO-A-1228

Link, hand brake cable crank

$5.00 NOS

GPW-2454

Pad, brake pedal cast (no shaft)

$25.00 R.

WO-A-1359

Pad, brake pedal (late type)

$40.00 NOS

BRAKE SHOES

Brake shoe set 4 shoes one axle

$40.00 R.



Brake shoe linings & rivets one axle set

$19.50

  Brake hose set 4 pc $55.00 R.









END
