CJ3B-CJ5 GROUP 8 TRANSFER CASE

CJ3B-CJ5

GROUP 8 TRANSFER CASE

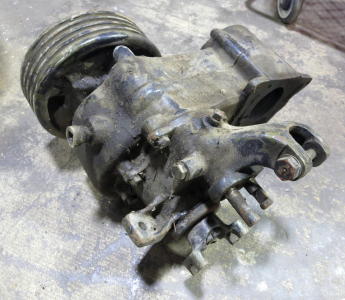

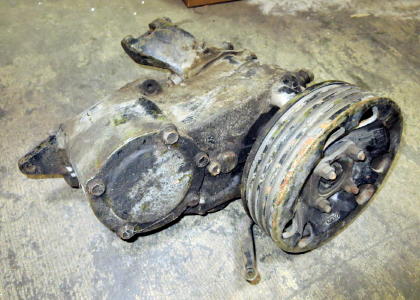

Complete Transfer Cases

We have a selection of Complete Transfer Cases available, NOS and otherwise, for various models. Give us a call or drop us an email for more information.

* * * * * * *

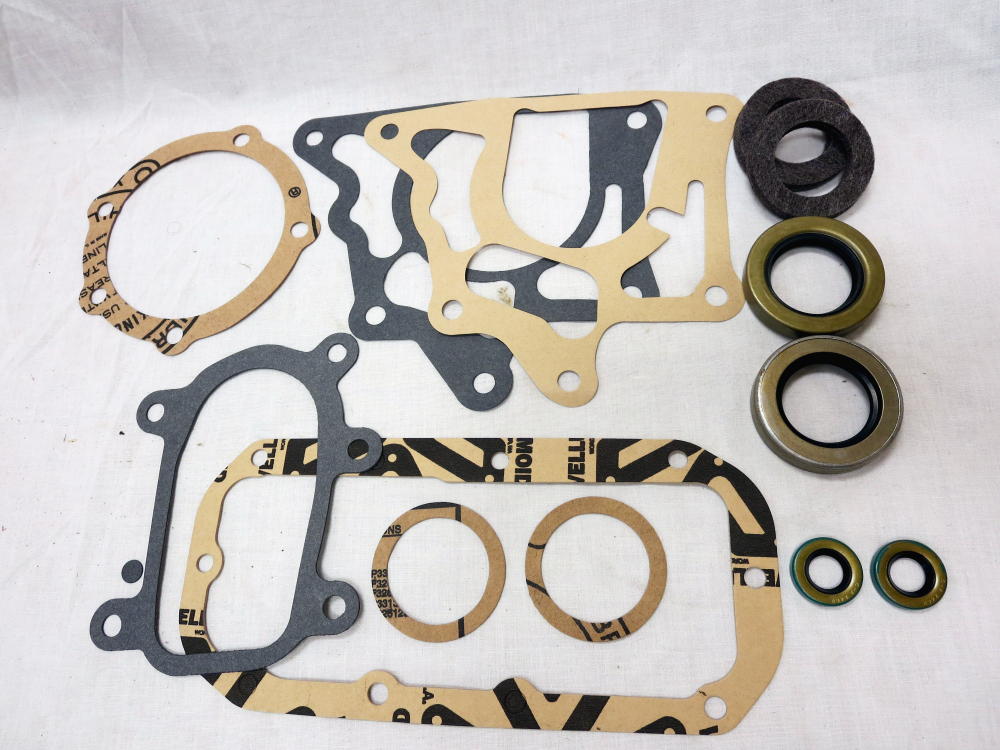

Dana 18 Transfer Case Gasket & Seal Set

This is the Transfer Case Gasket & Seal Set used on the M38 and M38A1. This is also used on the CJ2A, CJ3A, CJ3B, CJ5, MB and GPW.

- Price - Transfer Case Gasket & Seal Set - $25.00 -

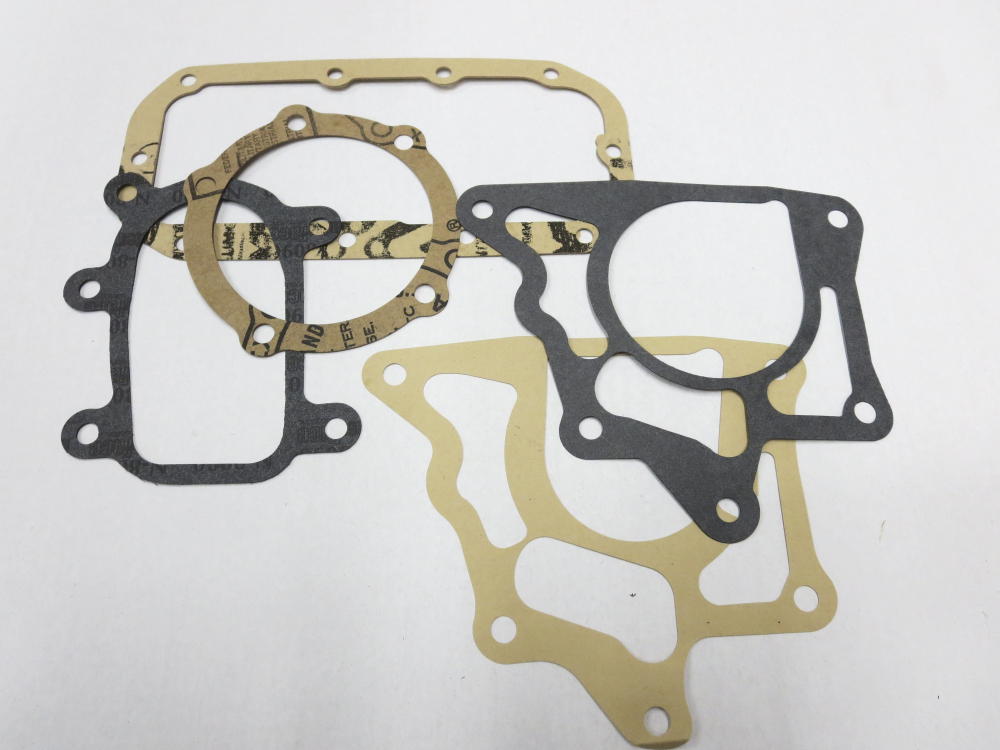

- Price - Transfer Case Gasket (no seals) - 10.00 -

Transfer Case Gasket & Seal Set - Transfer Case Gasket Set (no seals)

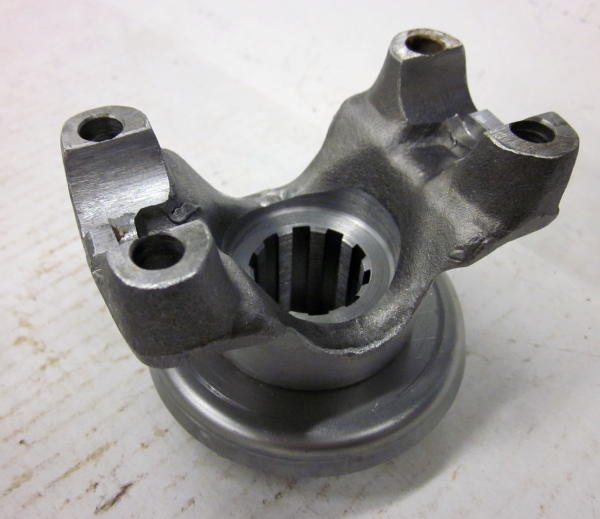

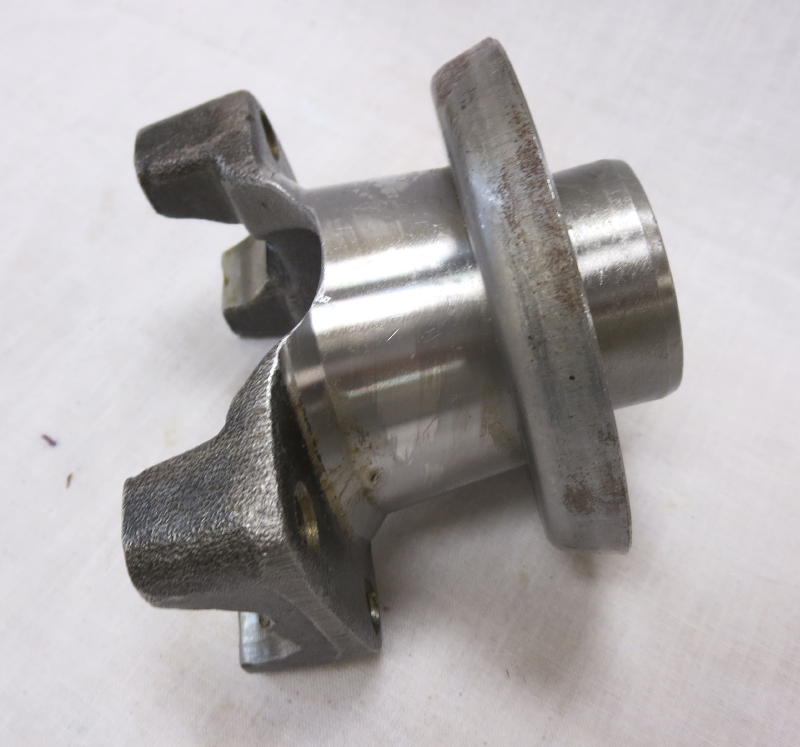

Front Output Yoke

This is a high quality reproduction of the Front Output Yoke used on the Dana 18 Transfer Case. Used on the MB, GPW, CJ2A, CJ3A, CJ3B, CJ5, M38 and M38A1.

- Price - $50.00 -

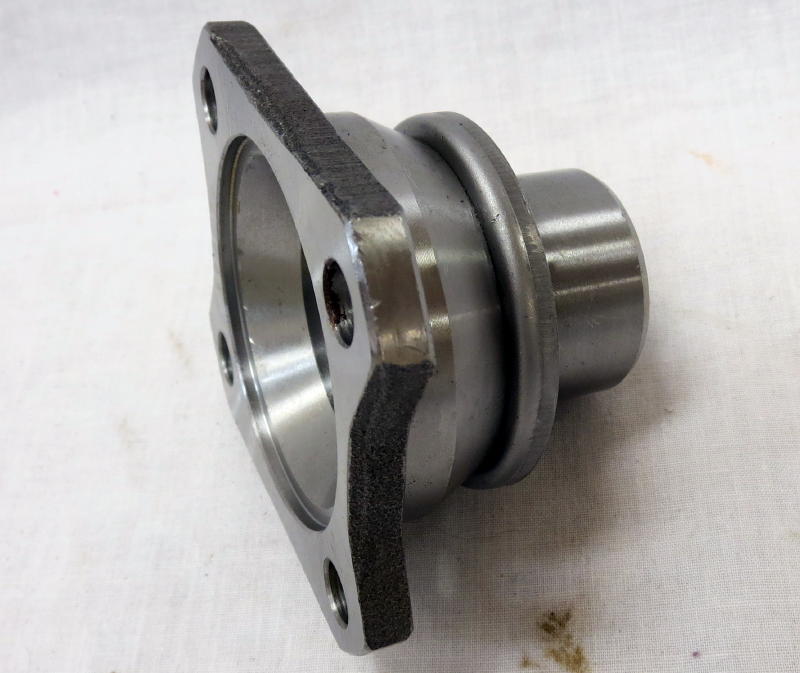

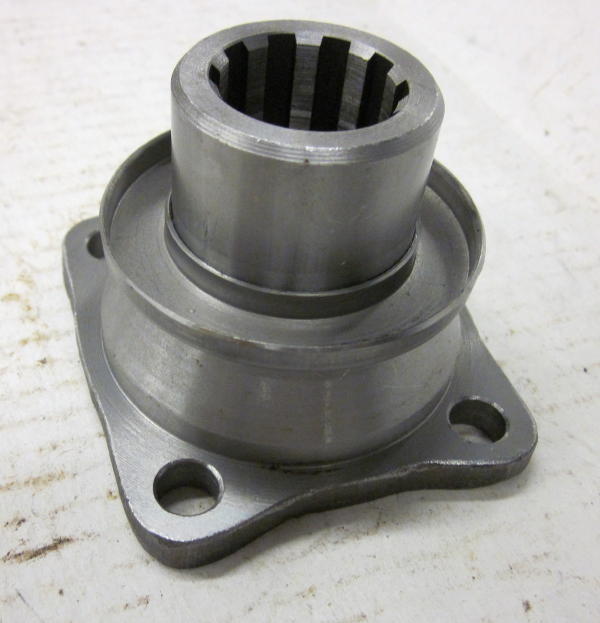

Rear Output Companion Flange

This is a high quality reproduction of the Rear Output Companion Flange used on the Dana 18 Transfer Case. Used on the MB, GPW, CJ2A, CJ3A, CJ3B, CJ5, M38 and M38A1.

- Price - $50.00 -

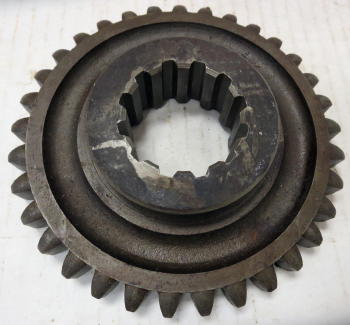

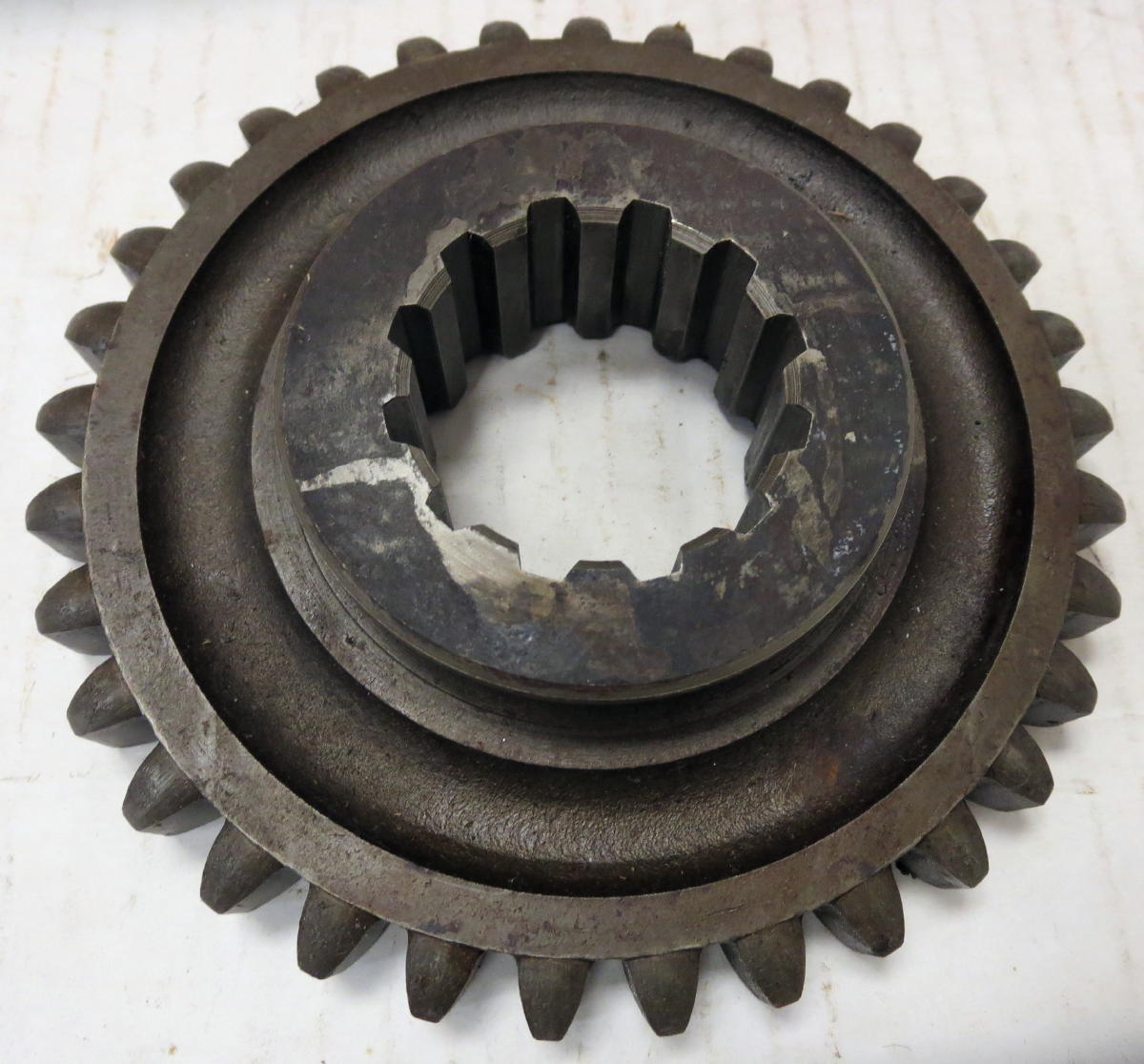

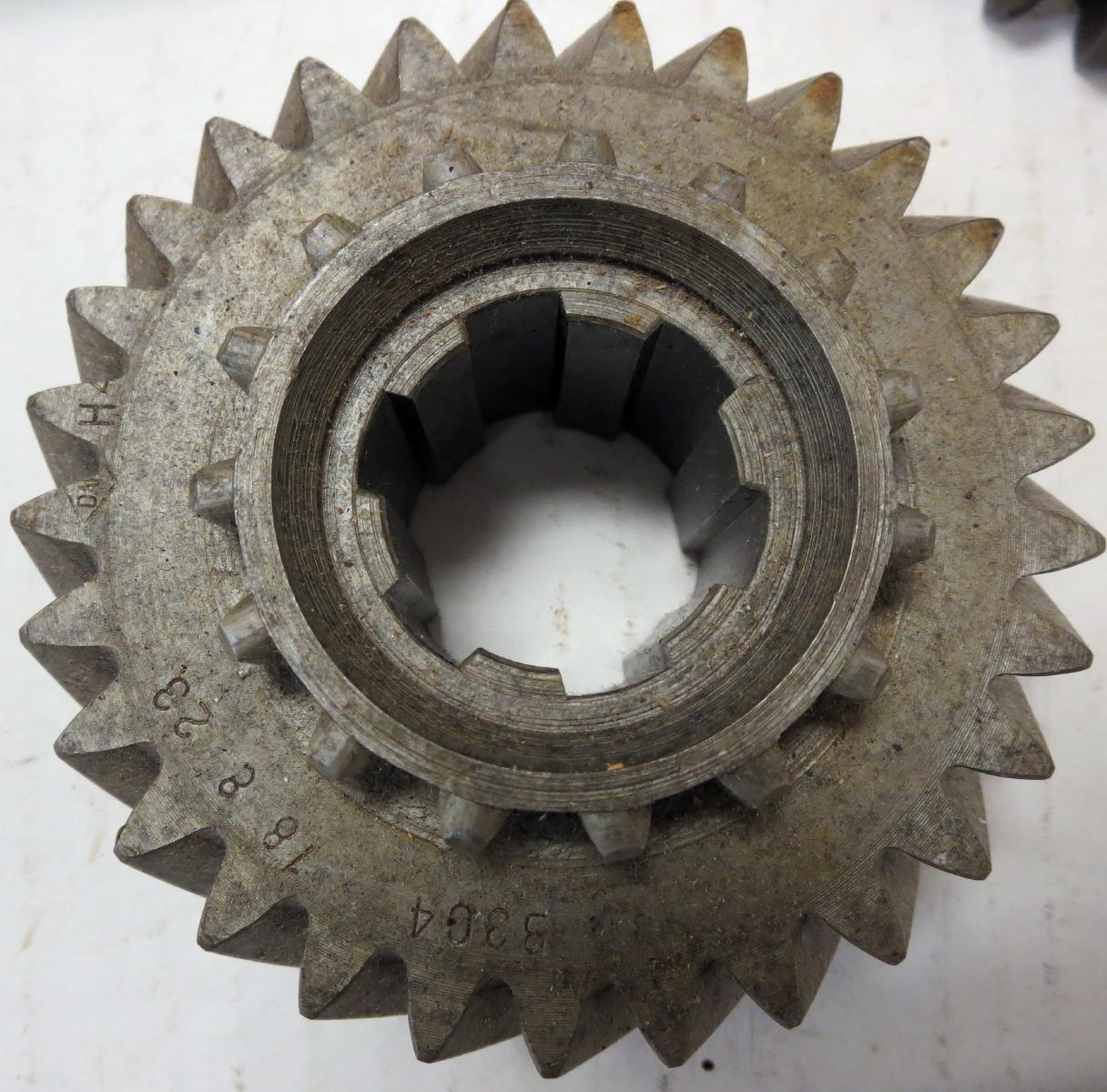

Transfer Case Sliding Gear CJ3B-CJ5

WO-809290

These are original NOS U.S. Made Transfer Case Sliding Gears for the CJ3B and CJ5.

- Price - $85.00 -

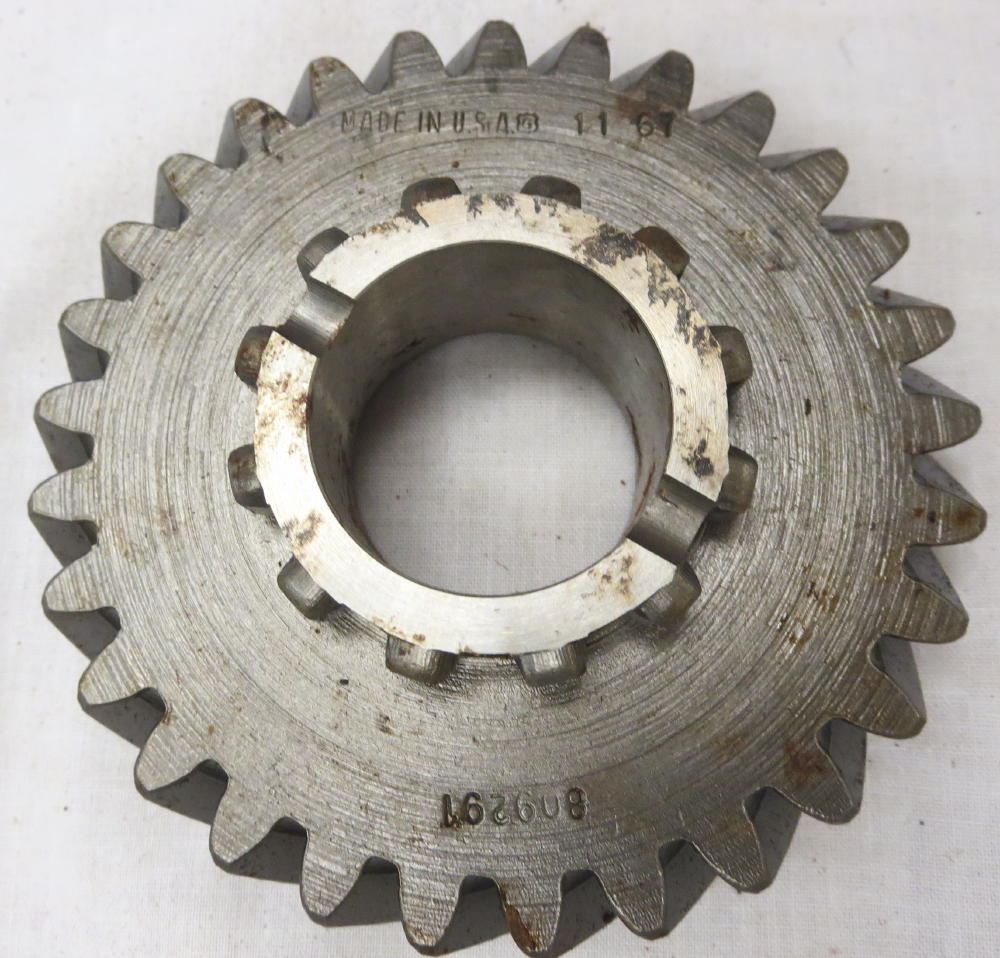

Transfer Case Output Gear CJ3B-CJ5

WO-809291

These are original NOS U.S. Made Transfer Case Output Gears for the CJ3B and CJ5.

- Price - $85.00 -

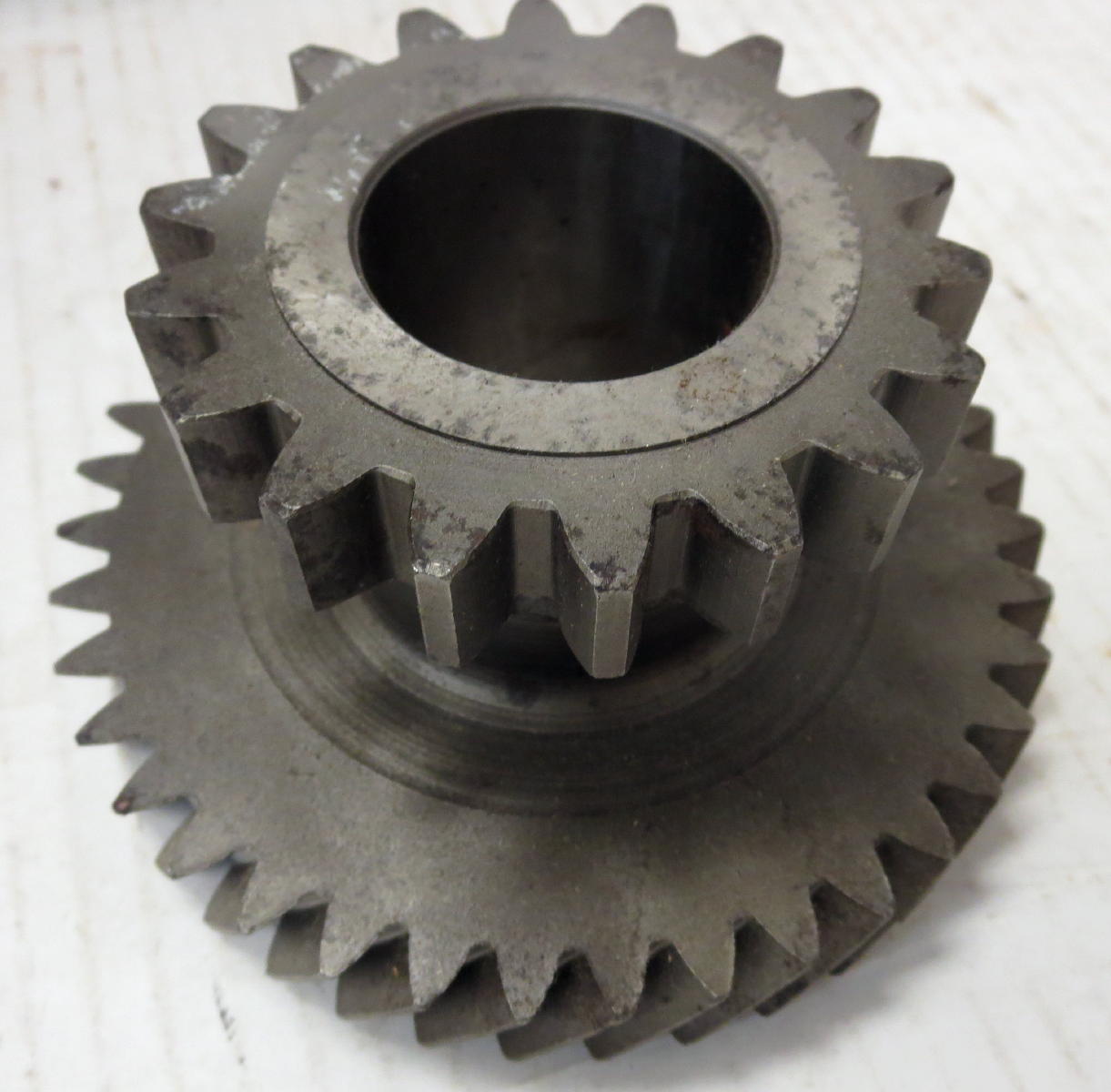

Intermediate Gear

WO-809293

These are original NOS U.S. Made Transfer Case Intermediate Gears for the CJ3B and CJ5.

- Price - $110.00 -

Transfer Case Main Drive Gear CJ3B-CJ5

WO-809297

These are original NOS U.S. Made Transfer Case Output Gears for the CJ3B and CJ5.

- Price - $65.00 -

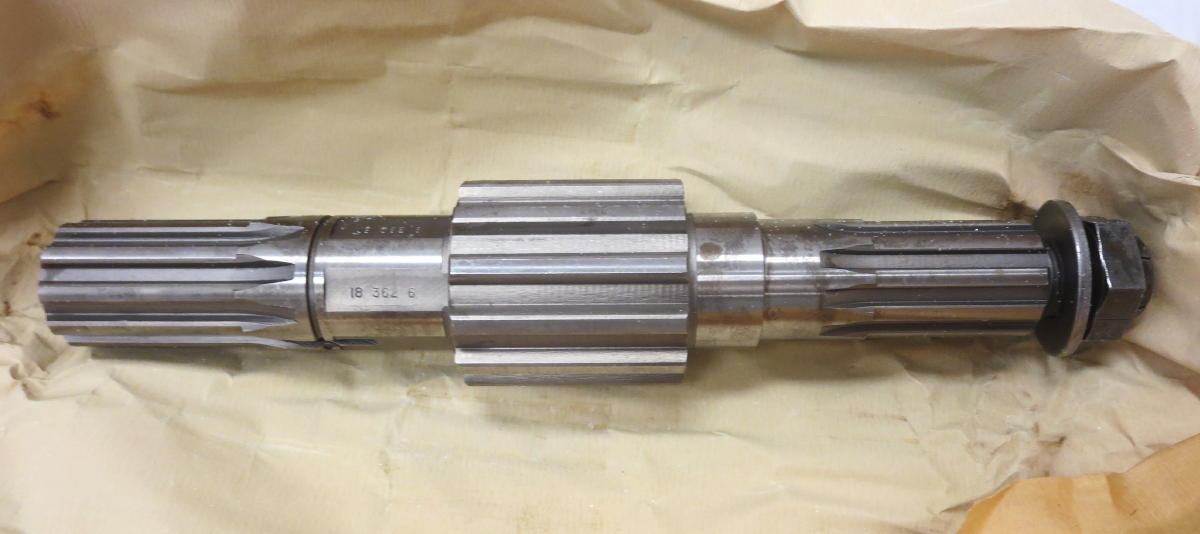

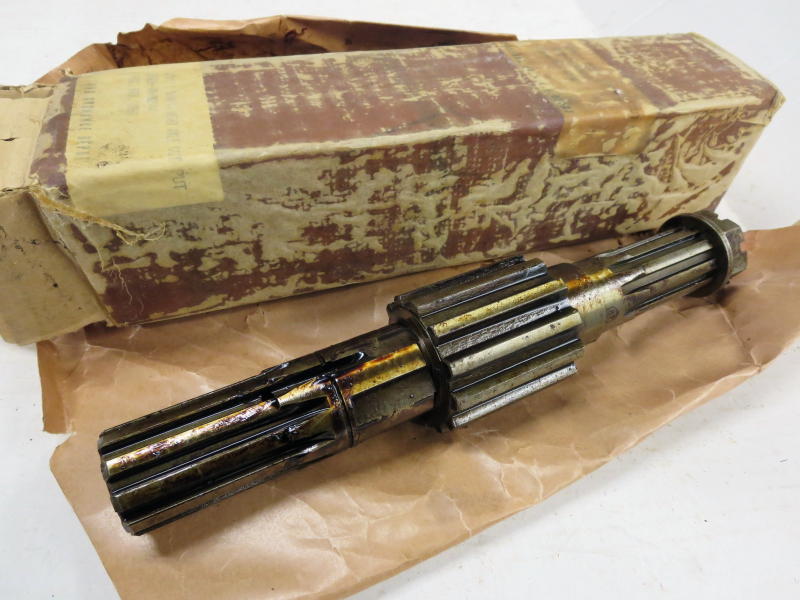

Transfer Case Output Shaft

WO-807767

These are original NOS U.S. Made Transfer Case Output Shafts for the WWII MB, GPW, CJ2A, CJ3A, CJ3B, CJ5, M38 and M38A1. Includes bushing.

- Price - $150.00 -

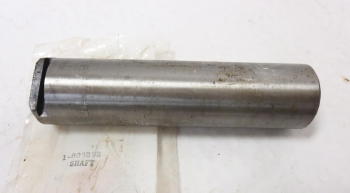

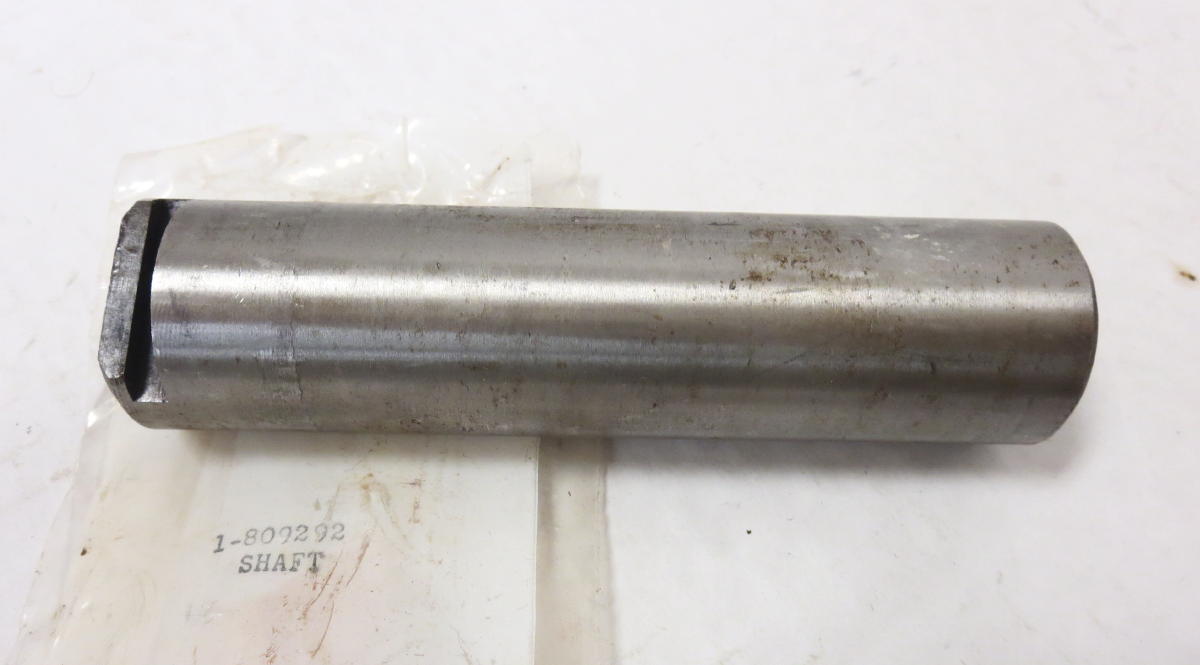

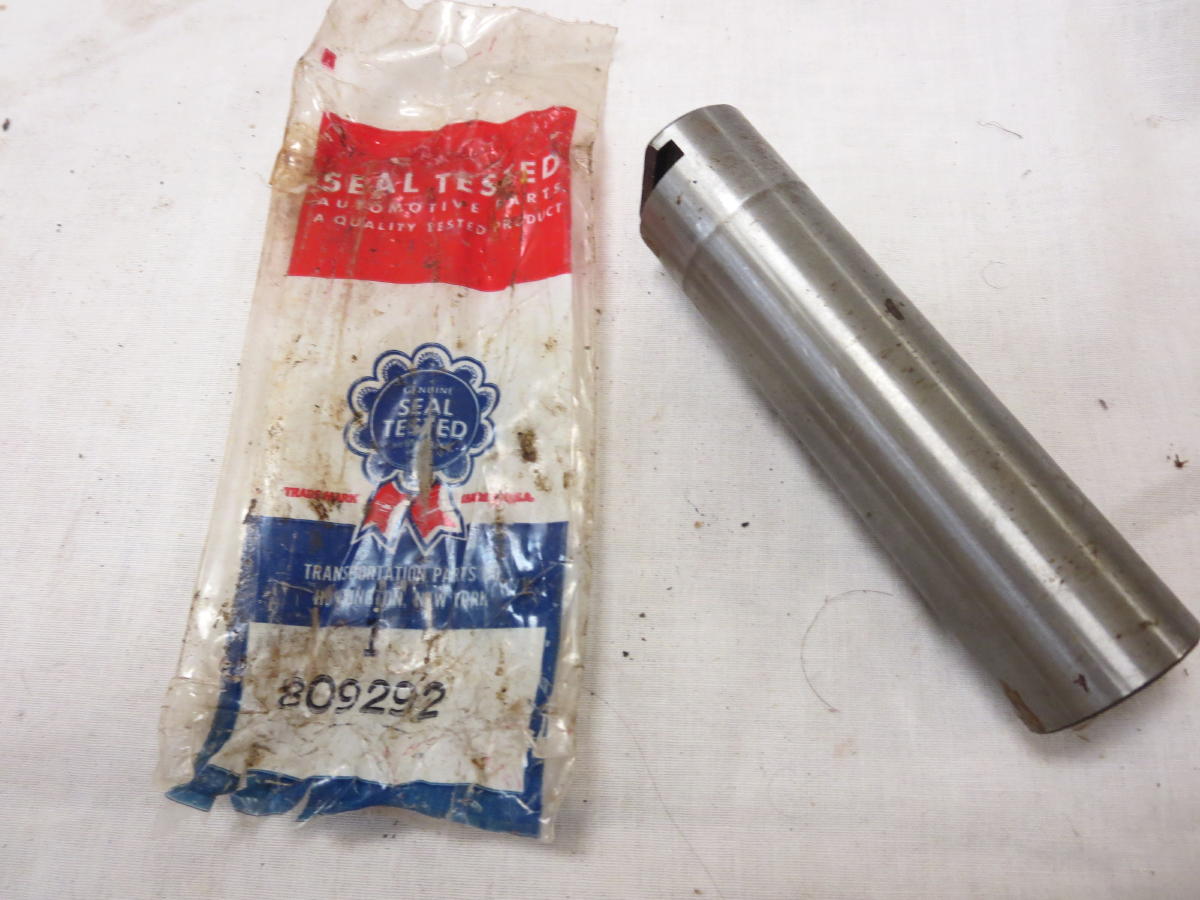

1-1/4 Inch Intermediate Shaft - CJ5 ONLY

These are original NOS U.S. Made Transfer Case Intermediate Shafts (1-1/4) for the CJ5. These are only for the CJ5.

- Price - $20.00 -

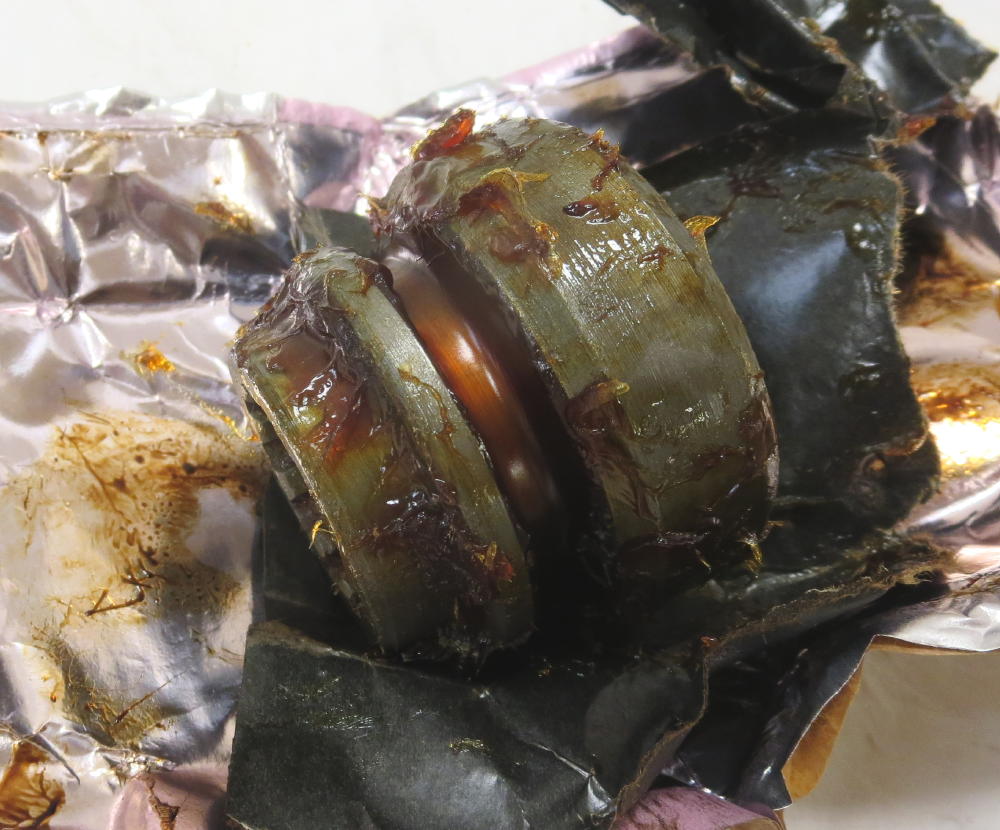

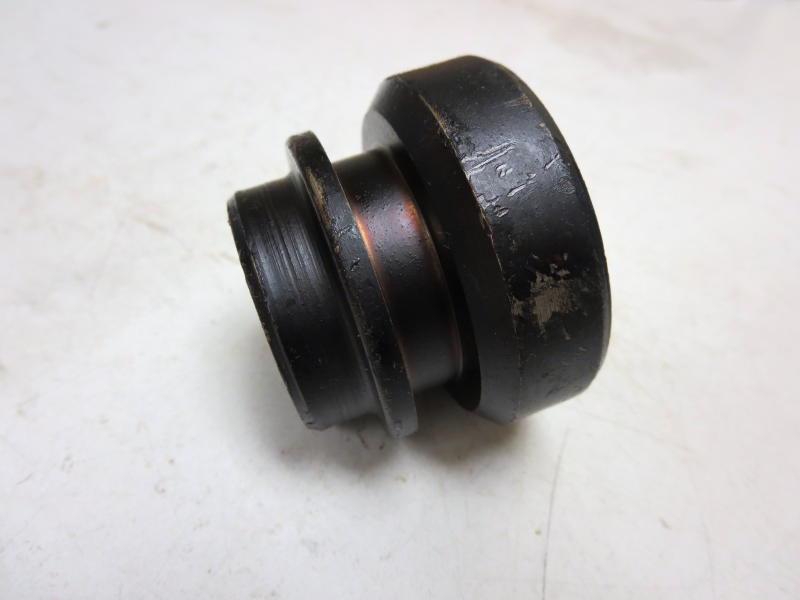

Clutch Output Shaft Gear

WO-A-992

These are original NOS U.S. Made Clutch Output Shaft Gears for the WWII MB, GPW, CJ2A, CJ3A, CJ3B, CJ5, M38 and M38A1.

- Price - $35.00 -

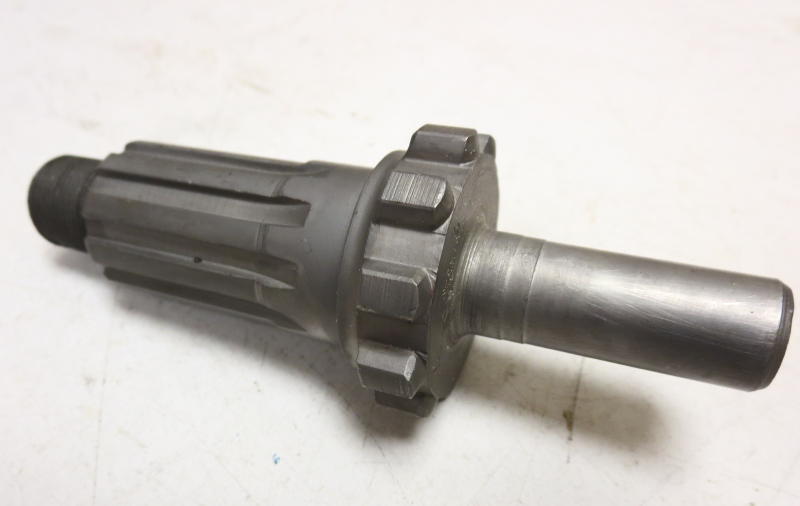

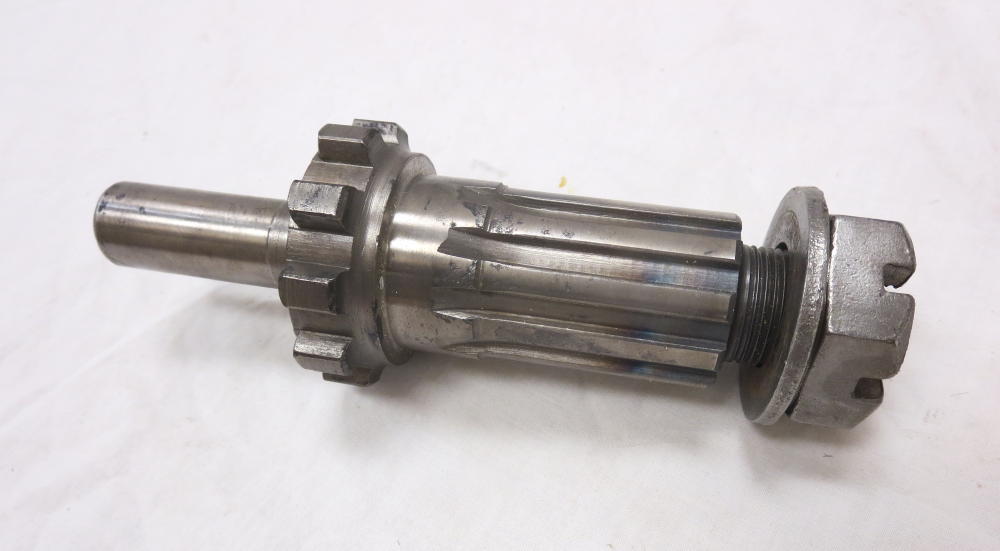

Clutch Output Shaft

WO-A-807892

These are original NOS U.S. Made Clutch Output Shafts for the WWII MB, GPW, CJ2A, CJ3A, CJ3B, CJ5, M38 and M38A1.

- Price - $40.00 -

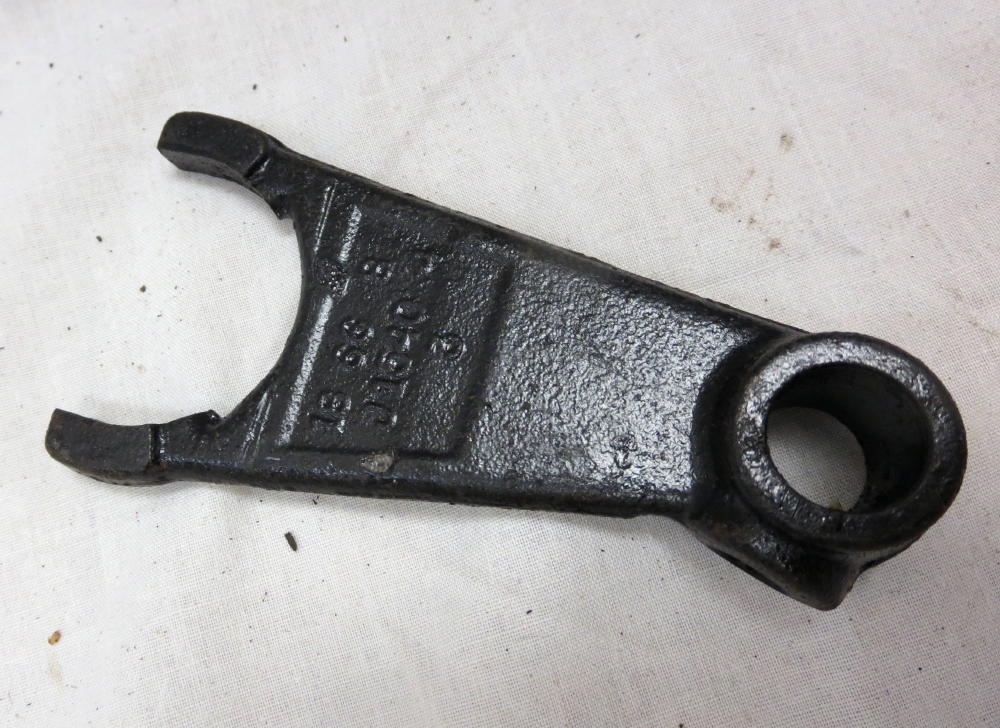

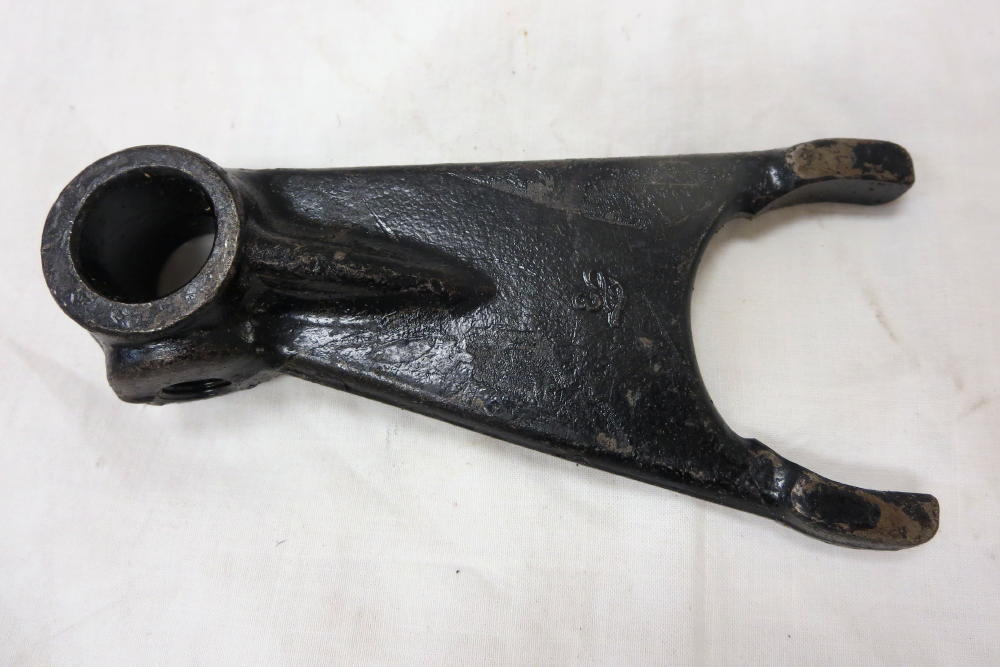

Shift Fork - Front Wheel Drive

WO-A-960

These are original NOS U.S. Made Transfer Case Front Wheel Drive Shift Forks for the WWII MB, GPW, CJ2A, CJ3A, C3B, CJ5, M38 and M38A1.

- Price - $15.00 -

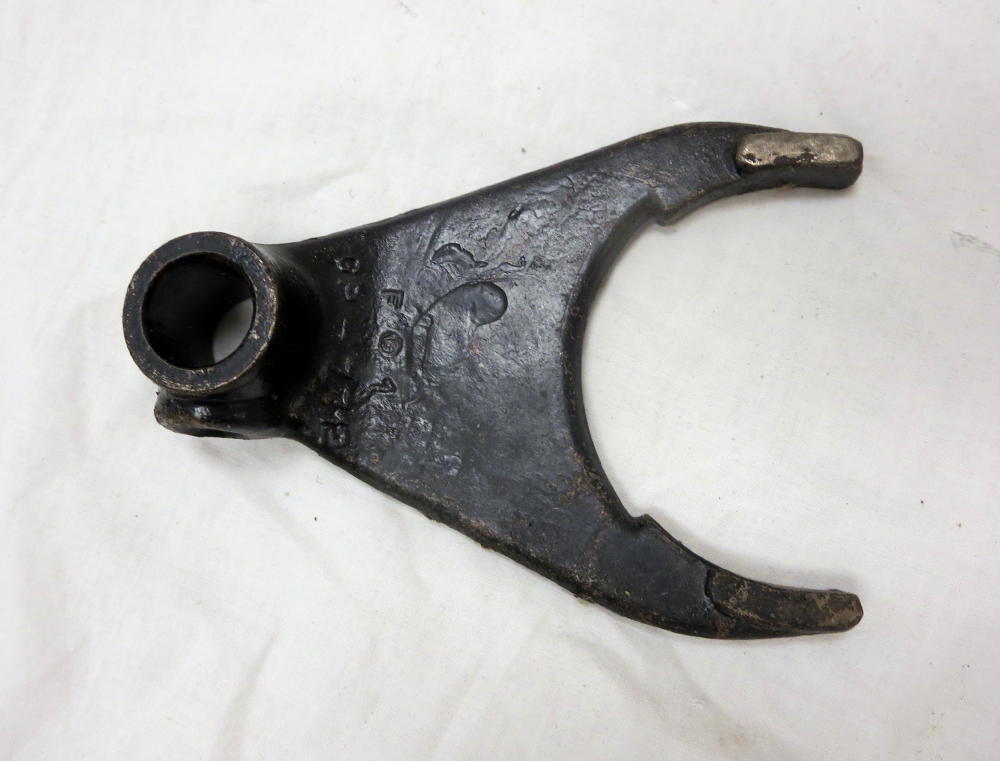

Shift Fork - High & Intermediate

WO-A-959

These are original NOS U.S. Made Transfer Case High and Intermediate Shift Forks for the WWII MB, GPW, CJ2A, CJ3A, C3B, CJ5, M38 and M38A1.

- Price - $15.00 -

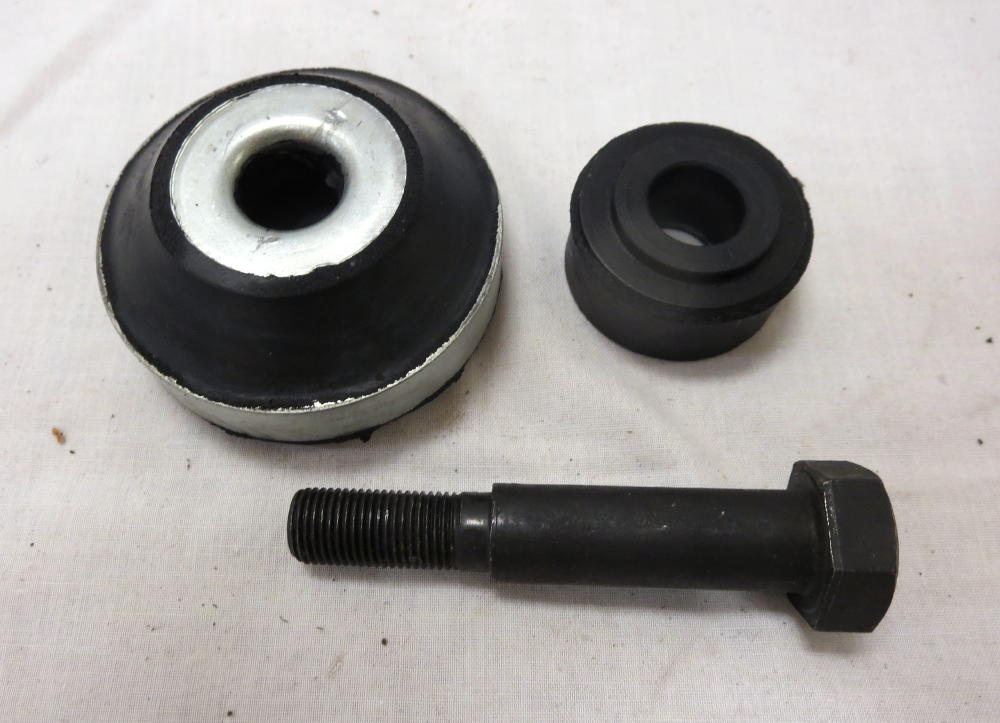

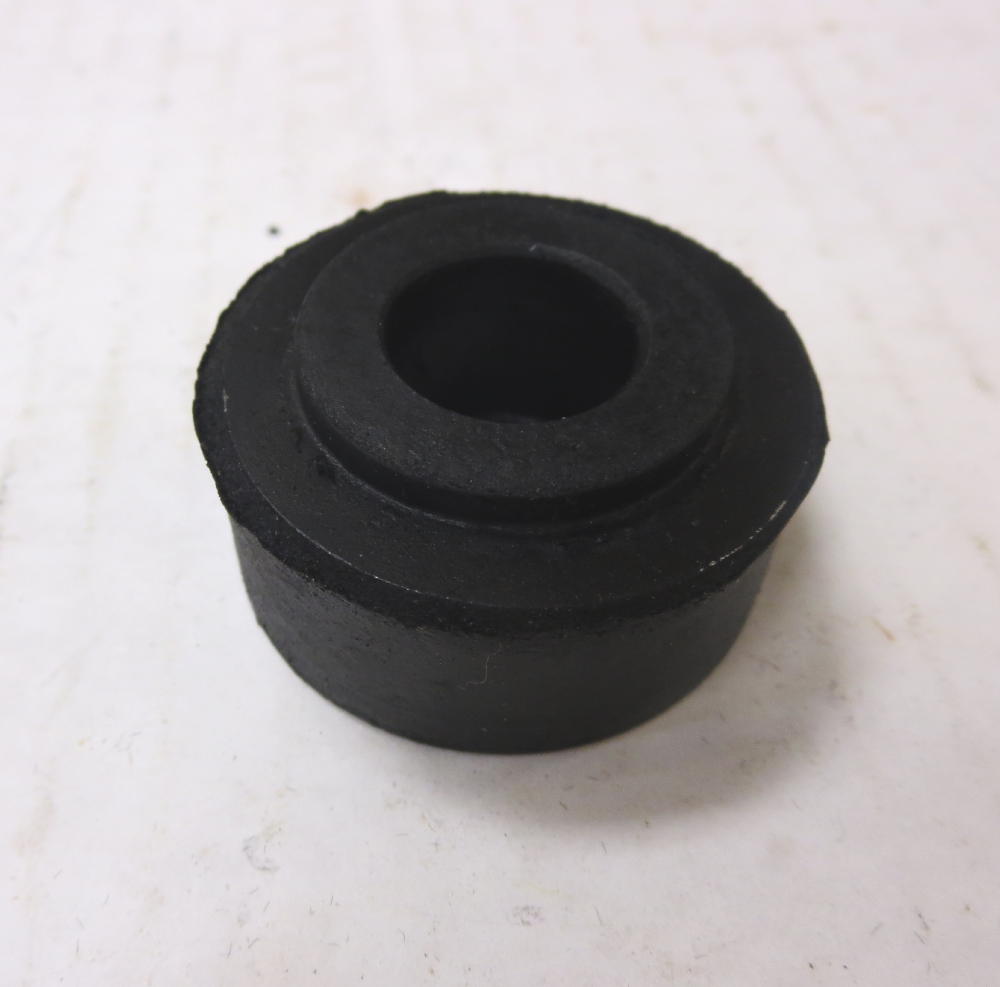

Dana 18 Transfer Case Insulator Mount Kit

These kits contain high quality reproductions of the Dana 18 Insulator, Snubber and Bolt.

- Price - $30.00 -

- All pieces available separately -

Transfer Case Shift Lever Boot CJ3B-CJ5

This Transfer Boot is new and improved with a high quality material that will resist sun damage. This is a high quality U.S. Made product.

Transfer Case Boot - Price $12.00

Don't see what you are looking for?

Try checking our C3JB-CJ5 Transfer Case Parts Listing. If something does not have a button to click for ordering then give us a call or send us an email.

Part #	Part Description (Transfer Case)	Price
	GROUP 8 TRANSFER CASE
	*Complete Transfer Case - CJ5 - Call for more Information.	$POR. NOS.

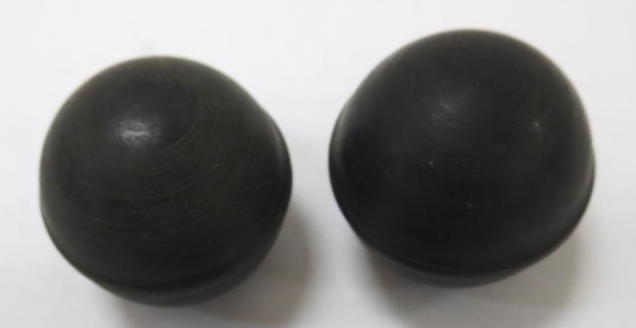

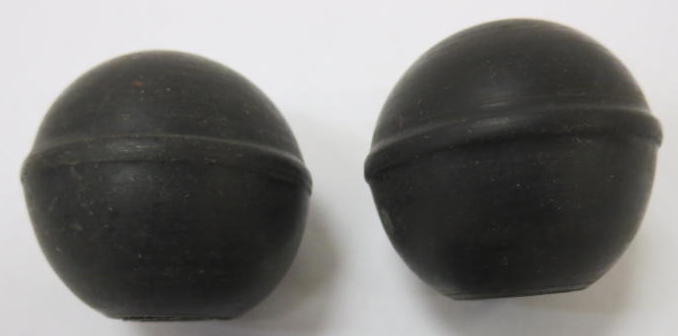

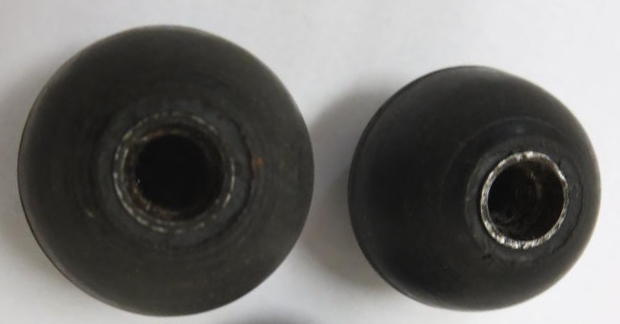

WO-A-971	Knob, gear shift	$5.00 R.
WO-644122	Gasket, trans to transfer case	$3.00 NOS
WO-A-1543	Gasket & seal set	$25.00 R.

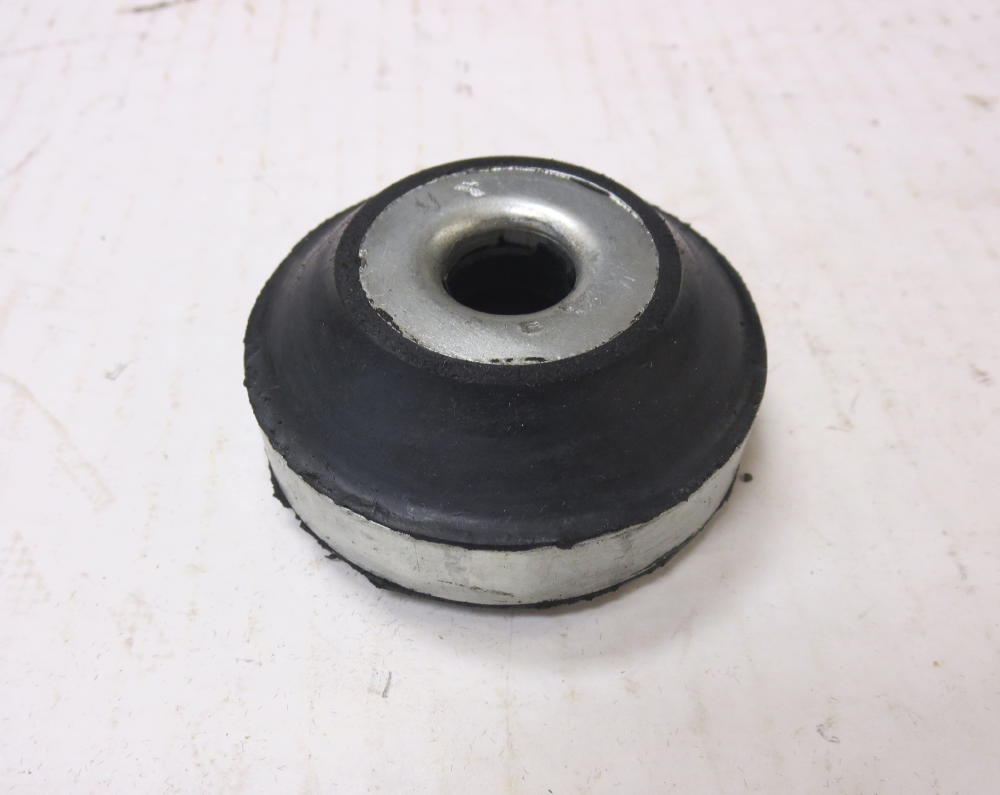

WO-634758	Insulator, transfer case support	$15.00 NOS
WO-634759	Snubber, case support insulator, transfer	$5.00 NOS
WO-A-147	Bolt, support transfer to insulator	$10.00 NOS
WO-923896	Oil seal output shaft	$8.00 R.
WO-A-7445	Oil seal set, output shaft & shift rails	$20.00 R.
WO-A-1504	Rod, shift high low	$POR. NOS
WO-A-962	Rod, shift, front wheel drive	$POR. NOS
WO-A-960	Fork, shifter, output clutch gear	$15.00 NOS
WO-A-959	Fork, shifter, output shaft sliding gear	$15.00 NOS
WO-453593	Ball, poppet, shift rod	$2.00 R.
WO-A-966	Spring, poppet, shift rod	$2.00 NOS
WO-A-967	Plug, poppet, shift rod	$3.50 NOS
WO-A-965	Interlock, shifter shaft	$5.00 NOS
WO-A-992	Gear, clutch, output shaft	$35.00 NOS
WO-807892	Shaft, output clutch	$40.00 NOS

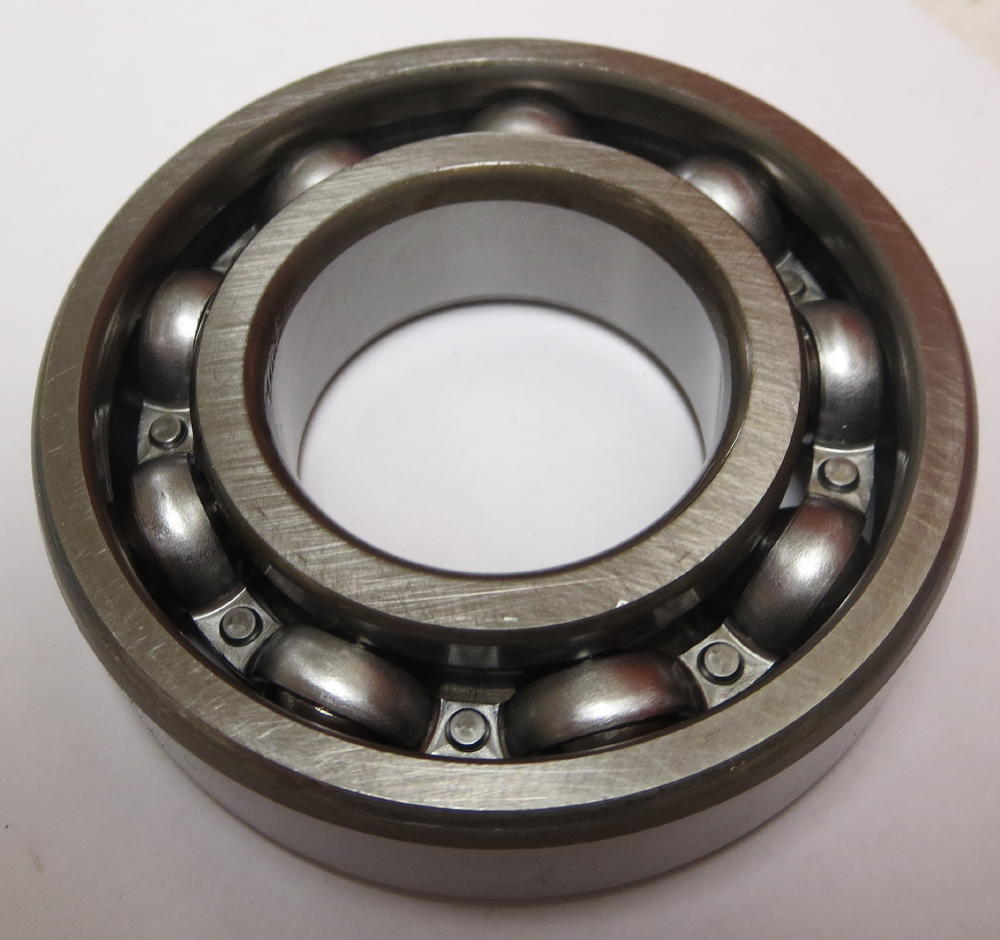

WO-A-1007	Bearing, output shaft	$15.00 R.
WO-809290	Gear, sliding output shaft	$85.00 NOS
WO-809291	Gear, output shaft	$85.00 NOS
WO-807767	Shaft, main output	$150.00 NOS
WO-801367	Nut, main shaft	$2.50 NOS
WO-A-1028	Washer, main shaft	$1.50 NOS
WO-A-987	Bushing, clutch shaft	$5.00 R.
WO-A-976	Snap ring, output clutch shaft	$1.50 R.
WO-A-990	Washer, output shaft	$3.50 R.
WO-A-991	Snap ring, output shaft	$1.50 R.
WO-809297	Gear, drive, main shaft, 29 tooth	$65.00 R.

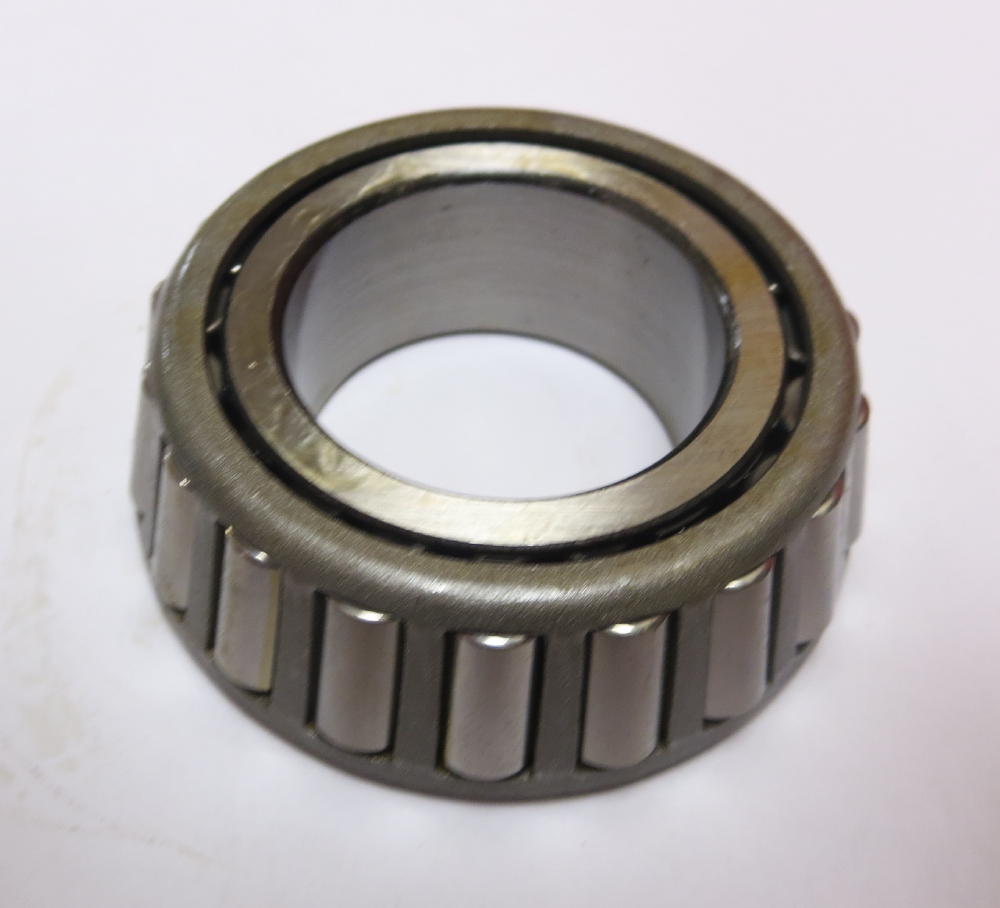

WO-51575	Bearing, output shaft	$19.00 R.

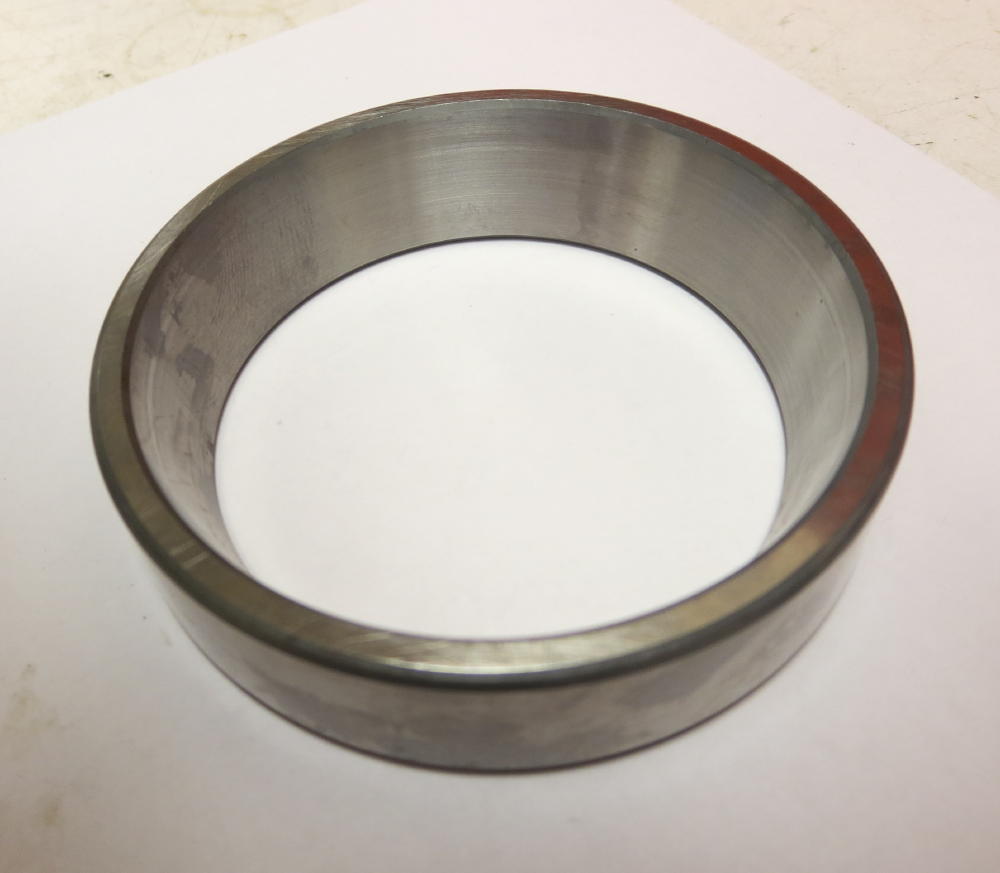

WO-52883	Cup, output shaft	$15.00 R.
WO-A-990	Washer, thrust output shaft	$4.00 R.
WO-A-991	Snap ring, output shaft	$1.50 R.
WO-809293	Gear, intermediate	$110.00 R.
WO-809294	Roller set, intermediate shaft (in small parts kit)	$15.00 R.
WO-809292	Shaft, intermediate	$20.00 NOS
WO-642191	Washer, thrust	$3.75 R.
WO-809295	Spacer, intermediate gear bearing	$3.00 R.
WO-A-1511	Gear, speedometer drive	$30.00 NOS
WO-A-5707	Gear, speedometer driven	$30.00 NOS
WO-636396	Sleeve, speedometer gear	$20.00 NOS
WO-A-956	Retainer, bearing, front	$150.00 NOS
WO-A-9330	Retainer, bearing, rear w/ stud	$125.00 NOS
WO-801330	Lever, gear shift, high & low range	$40.00 NOS
WO-801331	Lever, gear shift, front wheel drive	$40.00 NOS
WO-801332	Spring, shift lever	$6.00 NOS
WO-A-972	Pin, shift lever	$15.00 R.
WO-A-1105	Flange, rear companion output	$50.00 R.
WO-A-1106	Yoke, front output	$50.00 R.
WO-802088	Cover, rear	$25.00 NOS
WO-A-934	Breather, transfer case	$15.00 NOS
WO-935750	Kit, small parts	$55.00 R.

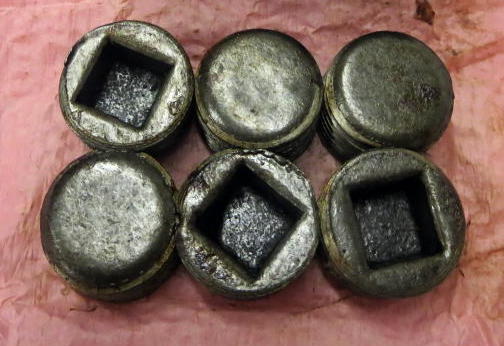

WO-A-5140	Plug, fill, transfer	$5.00 R.

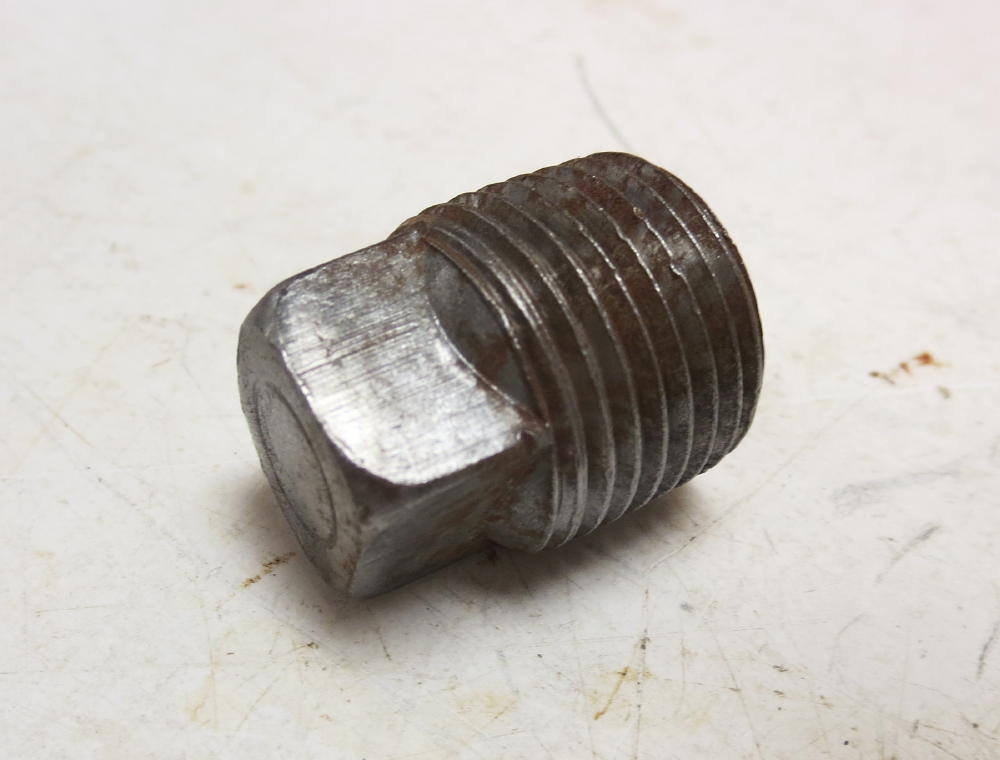

WO-A-1104	Plug, drain, transfer (sold individually)	$3.50 NOS
WO-A-967	Plug, transfer	$5.00 NOS
	All transfer case parts are surplus U.S. made, No Junk Here.
